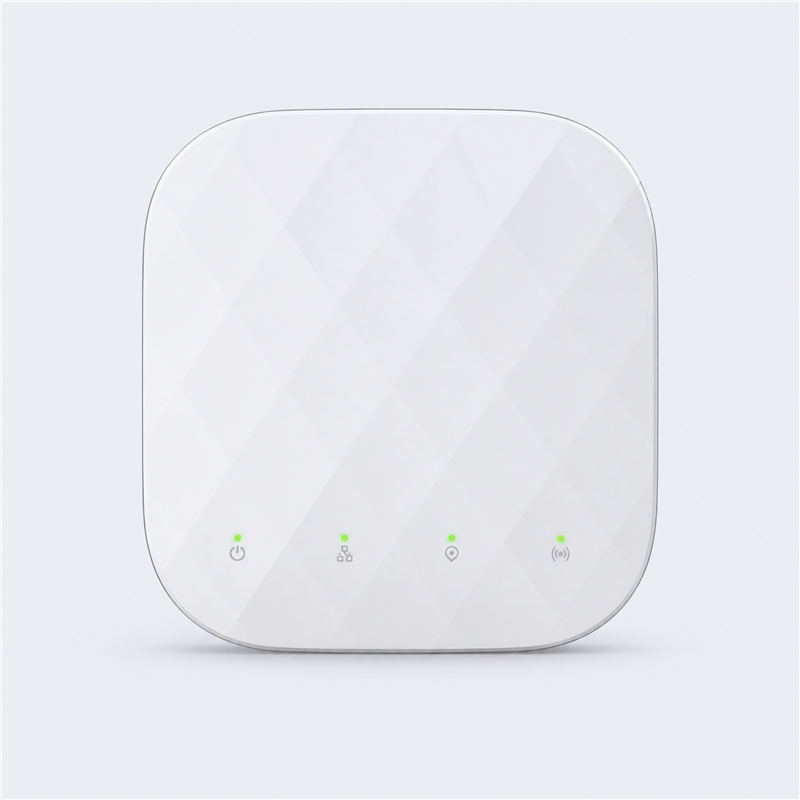

WE-RA210 High‑Precision Centimeter‑Level Positioning Uwb Indoor Wired Base Station
- The product uses wired backhaul and connects to the computing engine via a switch.

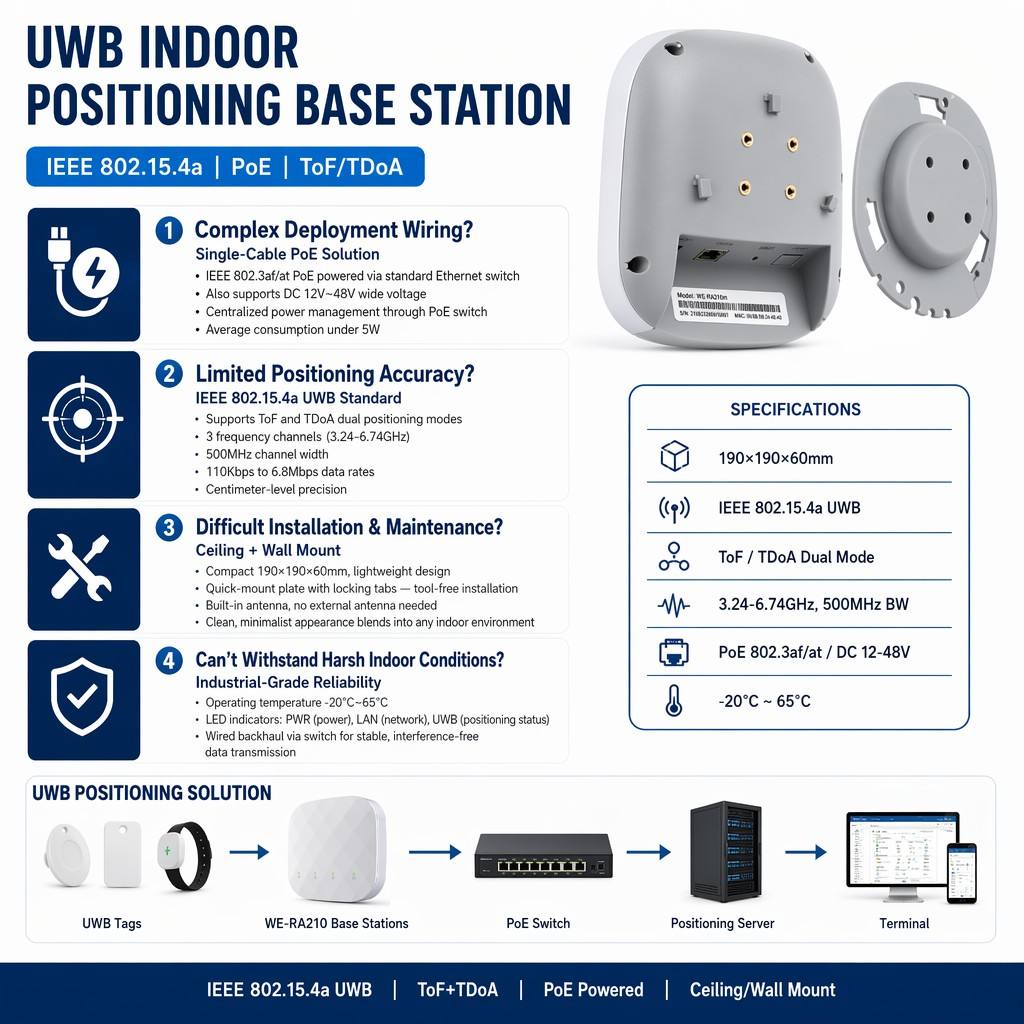

- The product is powered by wide voltage DC 12 ~ 48 V, or can be powered by network port, supports standard IEEE 802.3af/at PoE power supply, and can be centrally managed by PoE switch.
- The product supports a temperature range of-20 to 65°C and can be installed either as a ceiling-mounted or wall-mounted unit.

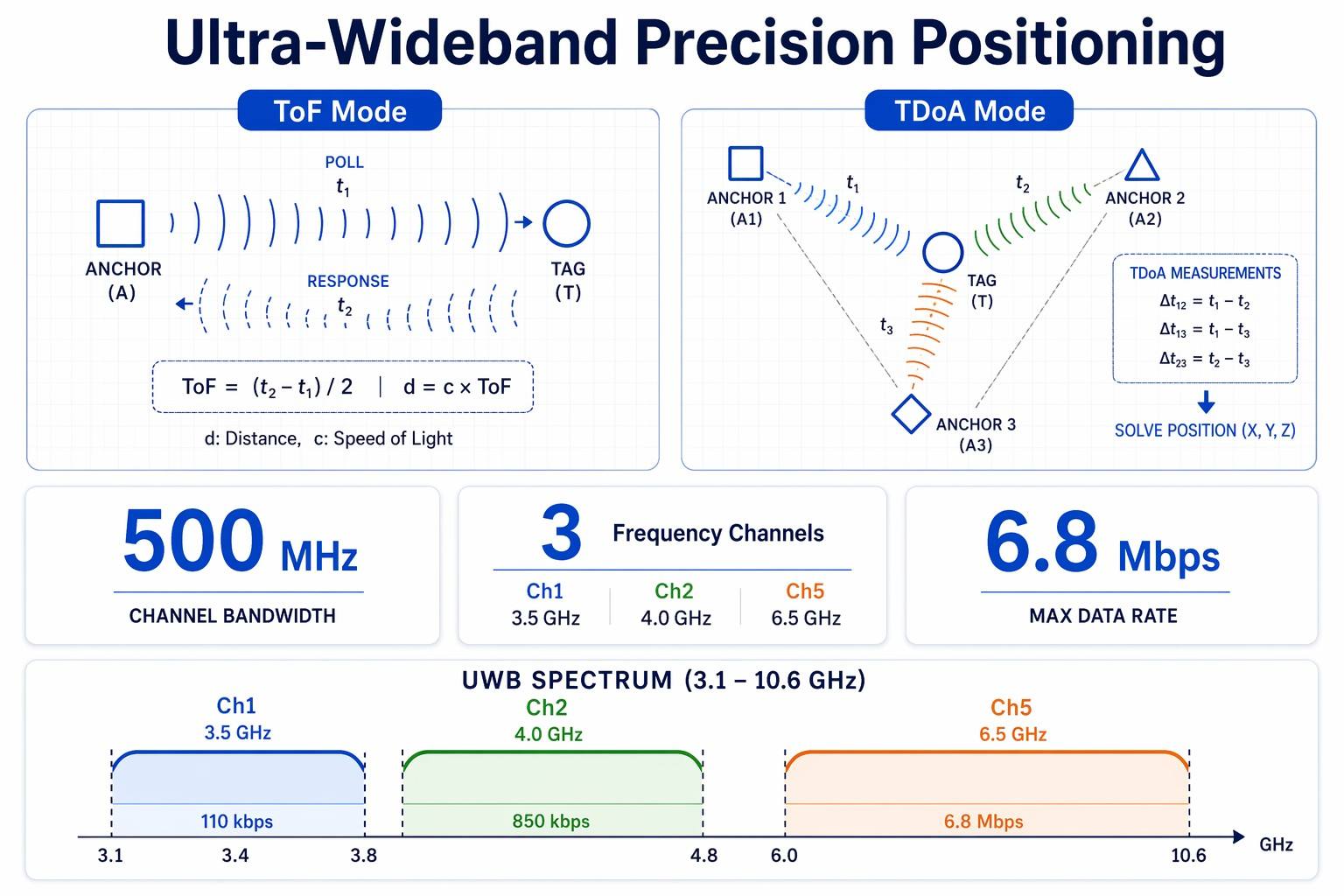

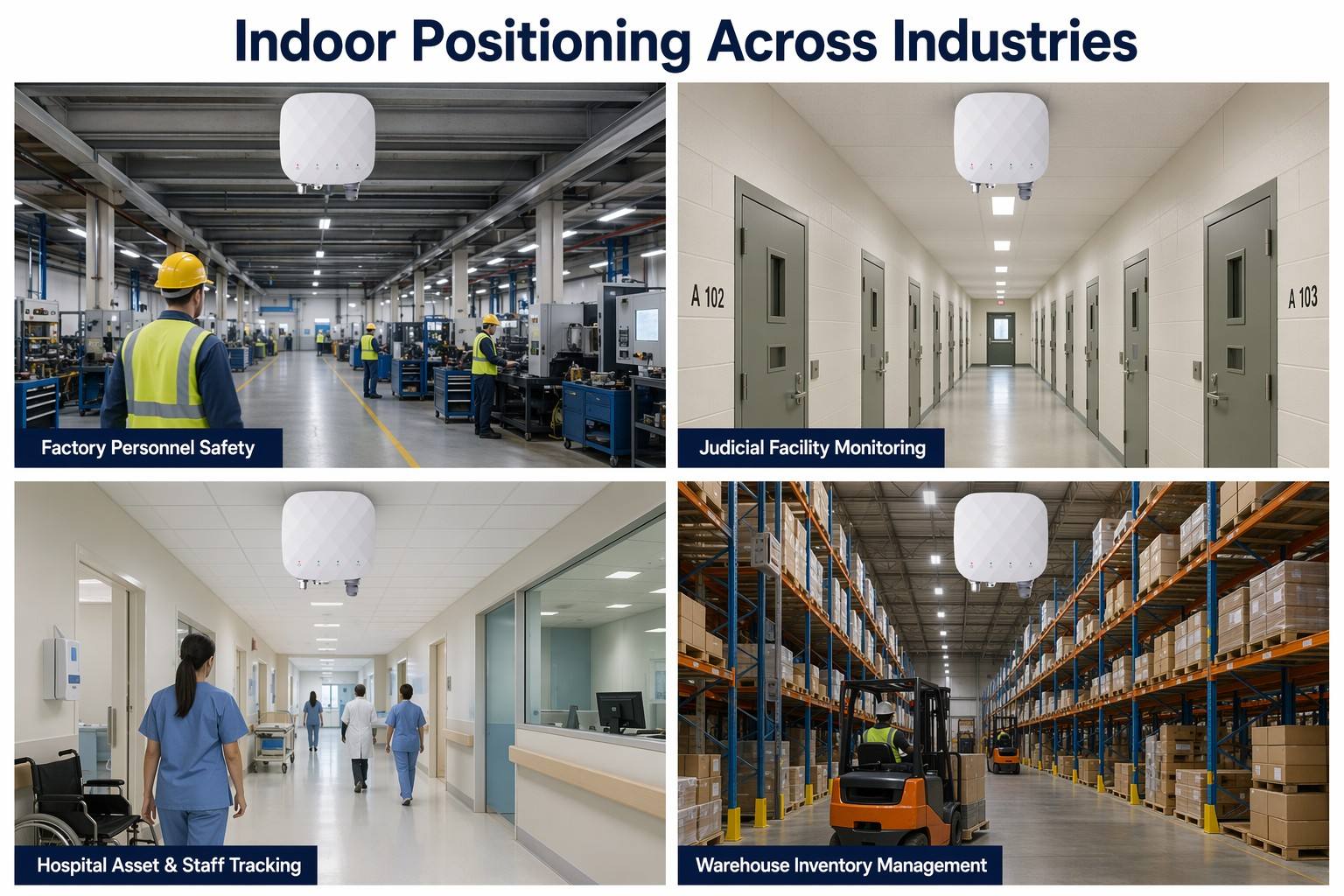

WE-RA210 is an IEEE 802.15.4a positioning base station designed by Hainan Shidian Technology Co., Ltd. It can support two positioning methods, ToF/TDoA. The product is mainly used in long-distance, high-precision positioning, and can be widely used in factory, judicial, hospital and other scenarios for personnel positioning and warehouse material positioning.

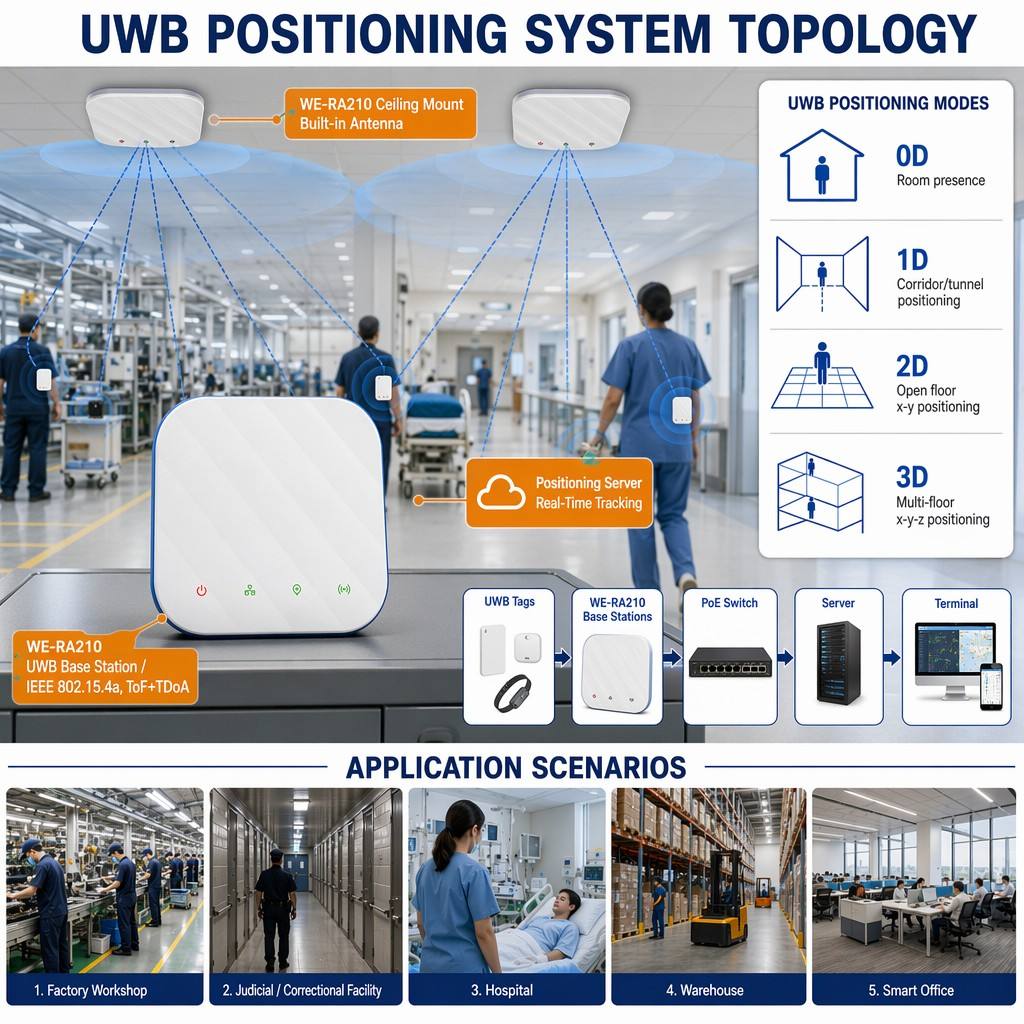

The product uses wired backhaul and connects to the computing engine via a switch.
The product is powered by wide voltage DC 12 ~ 48 V, or can be powered by network port, supports standard IEEE 802.3af/at PoE power supply, and can be centrally managed by PoE switch.
The product supports a temperature range of-20 to 65°C and can be installed either as a ceiling-mounted or wall-mounted unit.
| project | description | |||
| summary | ||||
| product name | WE-RA210 | |||
| Related regulations | IEEE 802.15.4a | |||
| IEEE 802.3af/at | ||||
| joggle | DC power port | |||
| RJ45 10/100M LAN | ||||
| key | Default key | |||
| input voltage | DC 12V ~ 48V | |||
| average power consumption | < 5W | |||
| way to install | Ceiling and Wall | |||
| LED | PWR | Green: Power on and stay on | ||
| LAN | The green wired data transmission indicator is flashing. | |||
| UWB | Green, work flashing | |||
| UWB radio frequency specifications | ||||
| operating frequency band | 3.24GHz ~ 3.74GHz（channel1） | |||
| 3.77GHz ~ 4.24GHz（channel2） | ||||
| 6.24GHz ~ 6.74GHz（channel5） | ||||
| physical rate | 110 Kbps | |||
| 850 Kbps | ||||
| 6.8 Mbps | ||||
| Output power (25℃) | -41dBm/MHz (typical), -24dBm/MHz (maximum) | |||
| channel width | 500MHz | |||
| antenna gain | 1dBi | |||
| Software specifications | ||||
| UWB work pattern | TDoA | |||
| TOF | ||||
| time lock | wireless time synchronization | |||
| Configuration | Server configuration | |||
| Web configuration | ||||
| configuration management | Web-based user management interface (remote/local management) | |||
| TFTP/HTTP software upgrade | ||||
| networking protocol | DHCP client | |||
| uplink interface | Interface B | |||
| physical specification | ||||

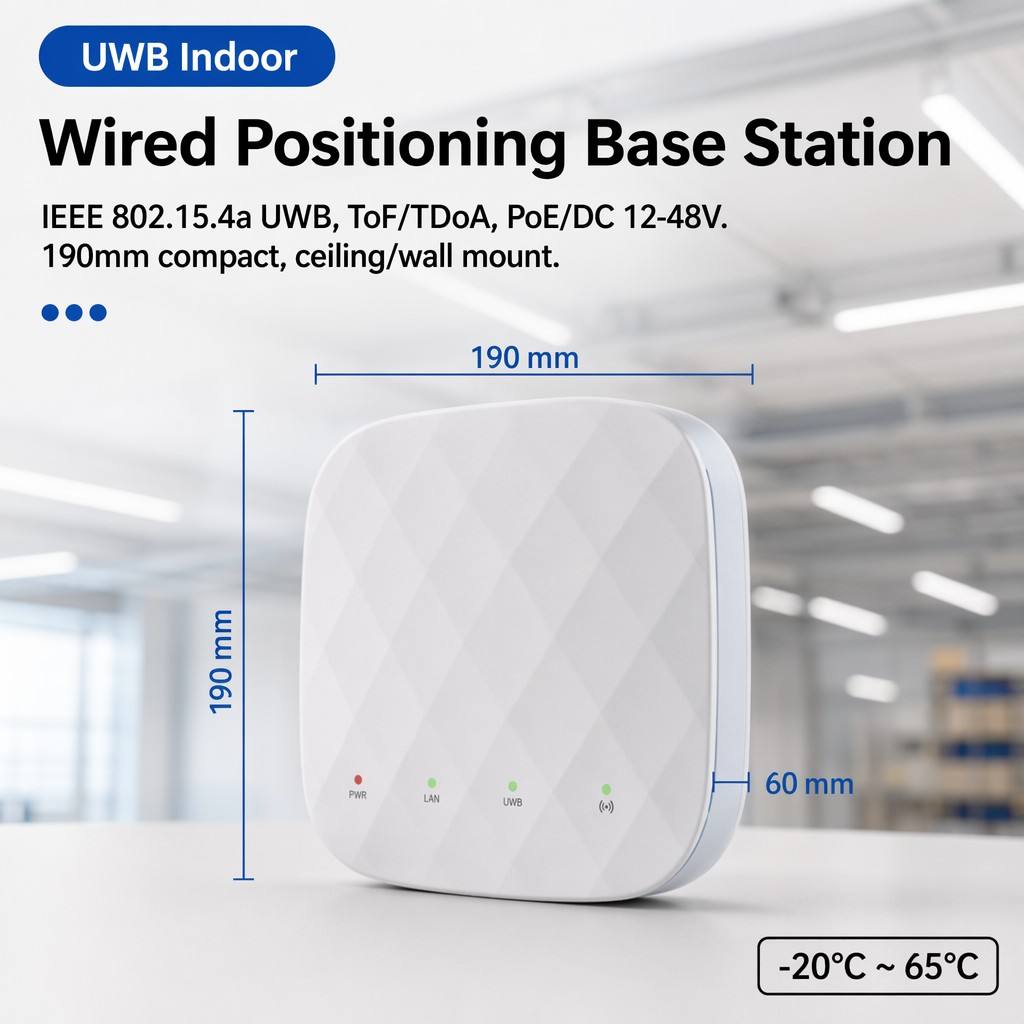

| Size (mm) | 190*190*60 (excluding the bracket) | |||
| Weight (g) | 468 | |||
| environmental specification | ||||
| temperature | Operating temperature: -20℃~65℃ | |||
| Storage temperature: -30ºC to 80ºC | ||||
