WE-T241-C High‑precision Centimeter‑level Positioning UWB Card‑shaped Electronic Tag
- Based on IEEE 802.15.4z UWB
-Nanosecond-level ultra-wideband pulse signals achieve centimeter-level positioning accuracy
- The applicable area is wide.
-High-band (CH5/CH9) design, supporting global applications
- ultra long distance communication
-LoRa enables long-range device communication
- BLE 5.1
-Auxiliary positioning, enabling Bluetooth positioning integration
- ultra low power
-Smart sleep mode and ultra-low power consumption design
- Light and easy
-Compact design for easy carrying and moving
- levels of protection
-IP67 protection rating, better environmental adaptability
- SOS key
-Active alert, one-click distress call
- Vibration, Beep
The platform issues an alarm with vibration and audible alerts.
- RFID
-ISO 14443A 13.56MHz IC card, supporting access control management and other functions
he WE-T241-C is a card-type positioning tag developed by Hainan World Electronic Science And Technology Co., Ltd. using ultra-wideband (UWB) technology. It supports high-precision positioning through TDoA, ToF, and AoA methods, with auxiliary positioning via BLE, barometer, and three-axis accelerometer.
The tag supports active SOS alerts, low battery alerts, and prolonged inactivity alerts, with vibration and buzzer notifications. It features a LoRa module for long-range device communication.

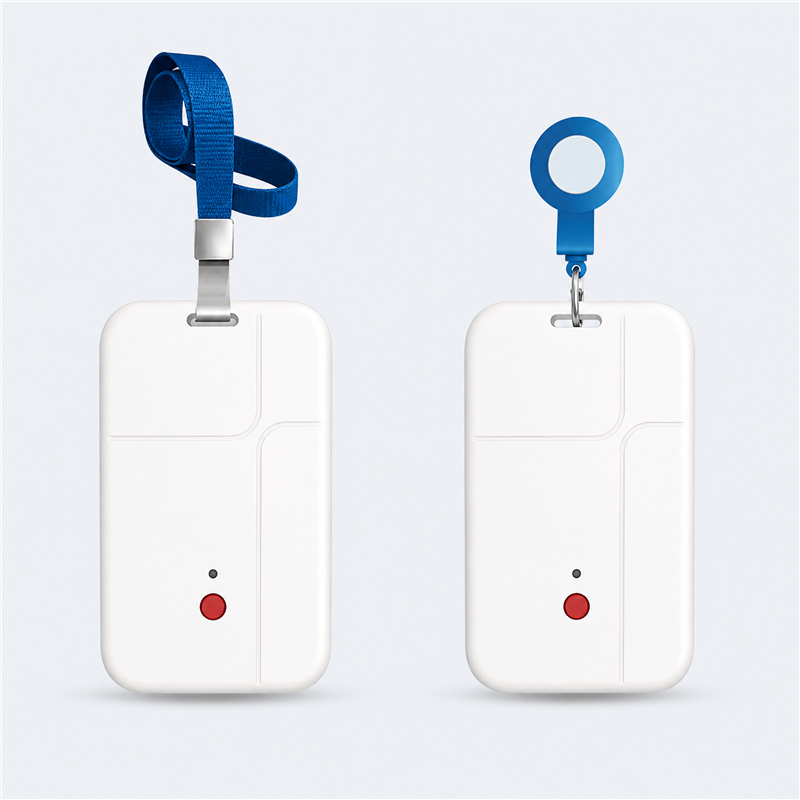

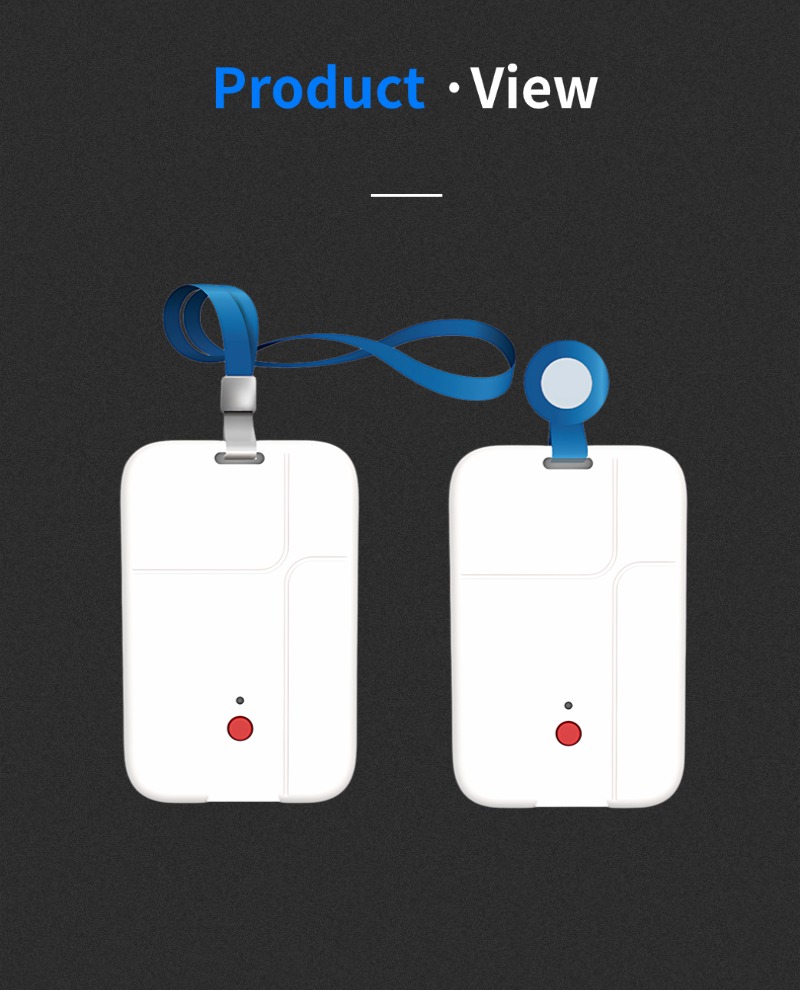

The tag supports both badge-style and armband-style wear, with built-in RFID access control. It features IP67 protection and meets explosion-proof standards (Ex iB IIC T6 Gb/Ex iB IIIC T80°C Db), making it ideal for industrial, power, and construction applications.
| project | description | ||||
| summary | |||||
| product model | WE-T241-C | ||||
| Related regulations | IEEE 802.15.4z | ||||
| IEEE 802.15.1 | |||||
| USB | 4 pin magnetic charging | ||||
| charging voltage | DC 5 V | ||||
| instantaneous power dissipation | < 1 W | ||||
| Standby time | XP scene ¹ | >1 month | |||
| Collision Avoidance Scenario 2 | about 7 days | ||||
| AoX scene | TBD | ||||
| refresh rate | 0.1~20 Hz (adjustable) | ||||
| Light indicator status | Charging | Red always on | |||
| Fully charged | Always green | ||||
| Low battery (working) | Red Flash | ||||
| Normal power (operating) | Green Flash | ||||
| UWB radio frequency specifications | |||||
| operating frequency band | 6.24 GHz~6.73 GHz（channel 5） | ||||
| 7.74 GHz~8.23 GHz（channel 9） | |||||
| physical rate | 850 Kbps | ||||
| 6.8 Mbps | |||||
| Output power (25℃) | ≤-41 dBm/MHz (typical), adjustable power | ||||
| channel width | ≥500 MHz | ||||
| Radio frequency specifications (LoRa) (optional) | |||||
| operating frequency band | 470~510 MHz | ||||
| transmission speed | 17 Kbps@ CR=1，SF=5，BW=125 KHz | ||||
| Max transmit power | 22 dBm@17 Kbps | ||||
| Maximum transmission distance | ≥1 Km | ||||
| Radio Frequency Specifications (BLE) | |||||
| operating frequency band | 2.4 GHz~2.4835 GHz | ||||
| physical rate | 1 Mbps | ||||
| Output power (25℃) | 0 dBm (typical value) | ||||
| RFID (Optional) | |||||
| standard agreement | ISO 14443A | ||||
| carrier frequency | 13.56 MHz | ||||
| transmission speed | 106 Kbps | ||||
| Software specifications | |||||
| UWB work pattern | TDoA/ToF/AoA | ||||
| dormancy | Smart hibernation | ||||
| Alarm upload | SOS active alert | ||||
| Low battery alert | |||||
| fall alarm | |||||
| Extremely long static alert | |||||
| Alert Issuance | Vibration (prompt, alarm, severe alarm) | ||||
| Buzzer (Alert, Warning, High Alert) | |||||
| auxiliary positioning | The auxiliary positioning is realized by BLE, three-axis accelerometer and barometer. | ||||
| data backhaul | Supports LoRa communication for long-distance backhaul | ||||
| upgrade | UART，OTA | ||||
| configure | UART interface, CLI configuration | ||||
| physical specification | |||||

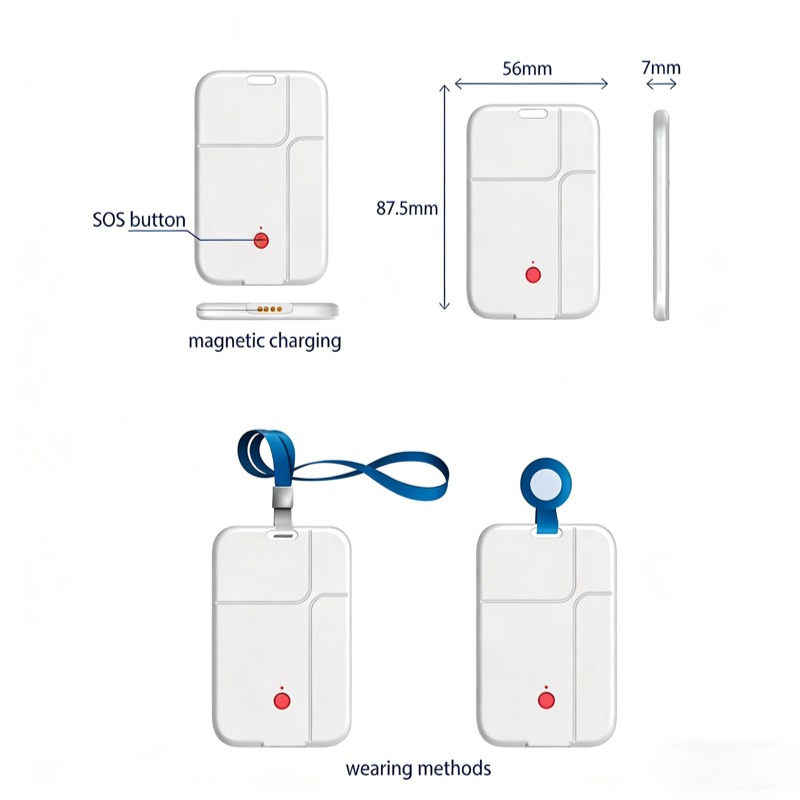

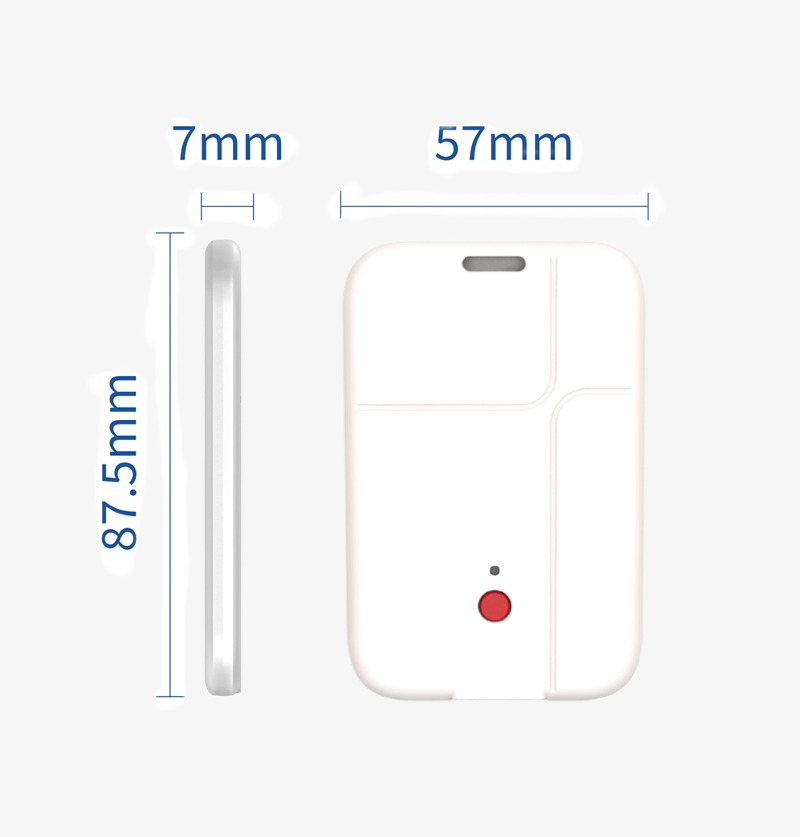

| Size (mm) | 57mm×87.5mm×7mm | ||||
| Weight (g) | 36 (excluding packaging) | ||||
| environmental specification | |||||
| temperature | working temperature | -20℃~60℃ | |||
| Storage temperature 2 | -30℃~70℃ | ||||
| humidity | working humidity | 5%~95% no condensation | |||
| waterproof and dustproof | IP67 | ||||
| flame retardant rating | UL94 V-0 | ||||
| RoHs | compatible | ||||
| compliance | EMC | GB/T 17626-2 IEC 61000-4 Class A | |||
| SRRC | MIIT Standard [2008] No.354 | ||||
