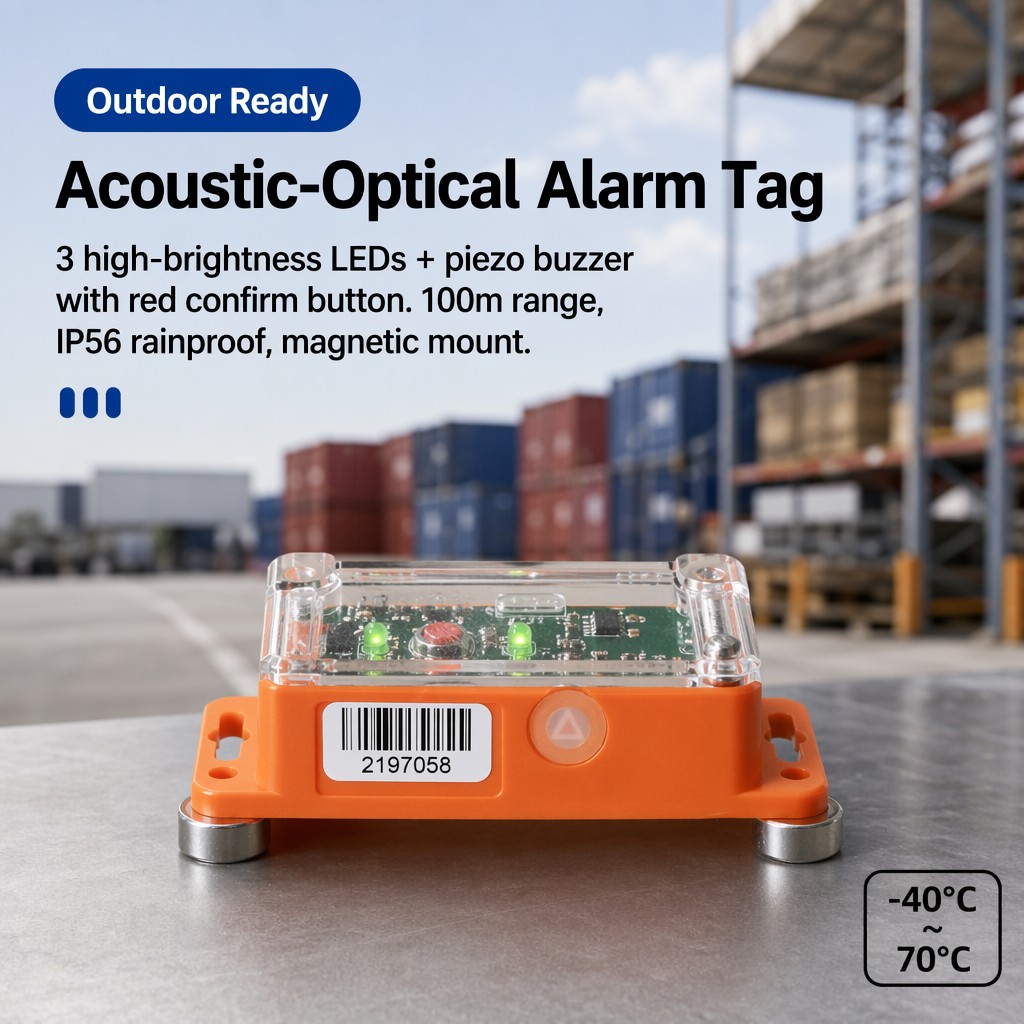

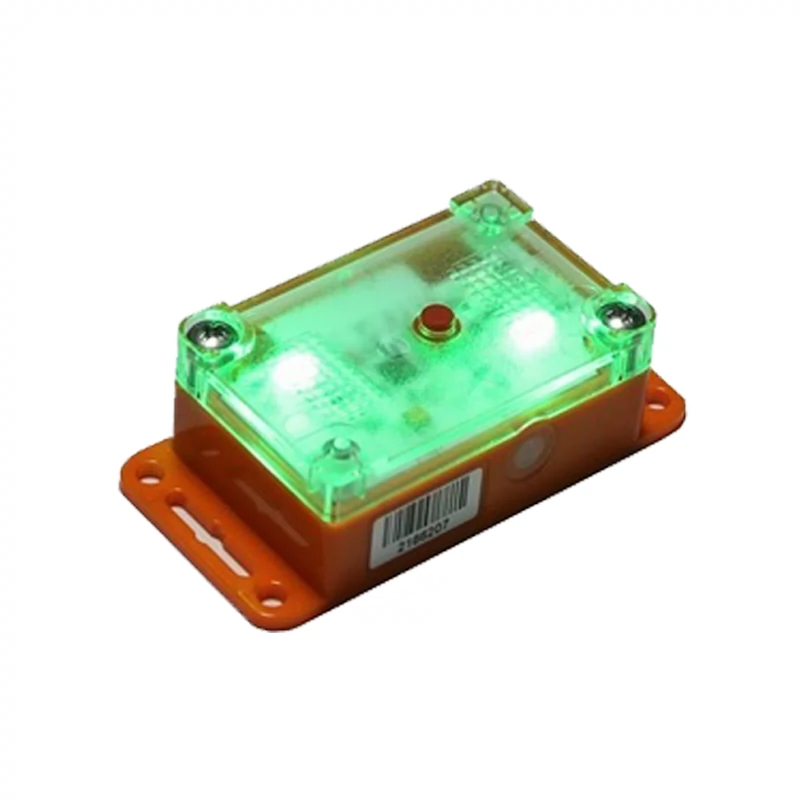

WE-T51 2.4GHz Wireless Asset Sound Light Alarm Locator Tag
- 1 ER14505 lithium battery can be fired 200 million times, and the battery can be replaced by itself.
- The total duration of sound and visual reminders shall not be less than 80 hours (excluding wireless transmission power consumption).
- The total duration of sound and visual reminders shall not be less than 80 hours (excluding wireless transmission power consumption).
- There is an under-voltage reminder and a real-time power display, and the residual power can be transmitted 10 million times after under-voltage.
- The wireless transmission power is 3mW, the transmission distance can reach 100 meters, and the standby power consumption is only 2uA.
- The wireless frequency band adopts the 2.4GHz global development microwave frequency band, which does not require application and payment.

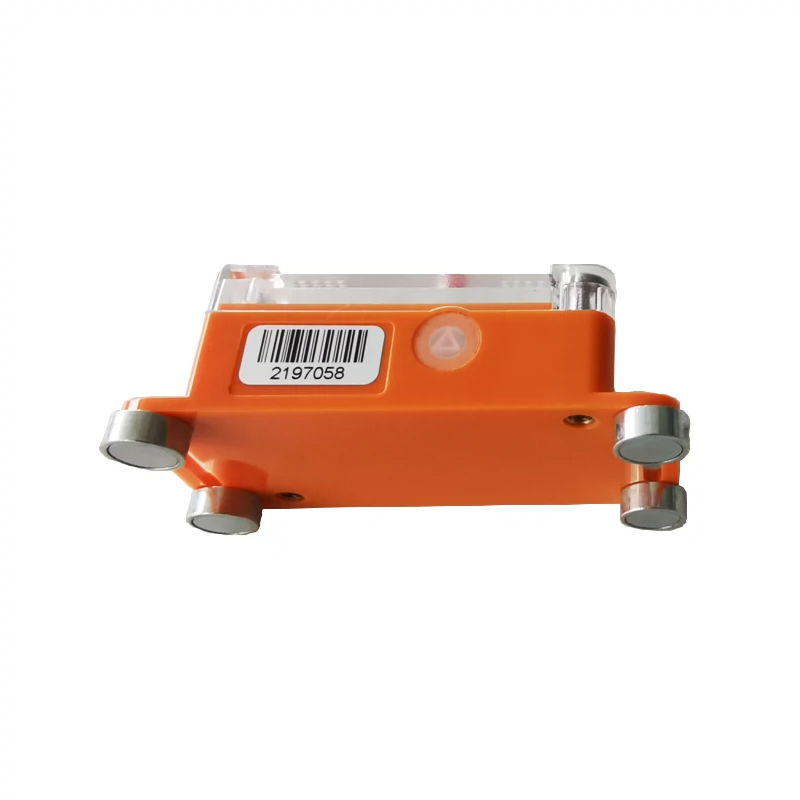

- The 4 magnetic nails can be easily attached to the surface of iron objects, and can also be installed with screws and cable ties.
- The shell is made of PC engineering plastic, and the protection grade is IP56, which can be exposed to rain outdoors.
- Cuboid 62mm*40mm*25mm (excluding hanging ears on both sides), weight 62g.
- The working temperature is -40°C ~70°C, which can be used in outdoor extremely cold environments.

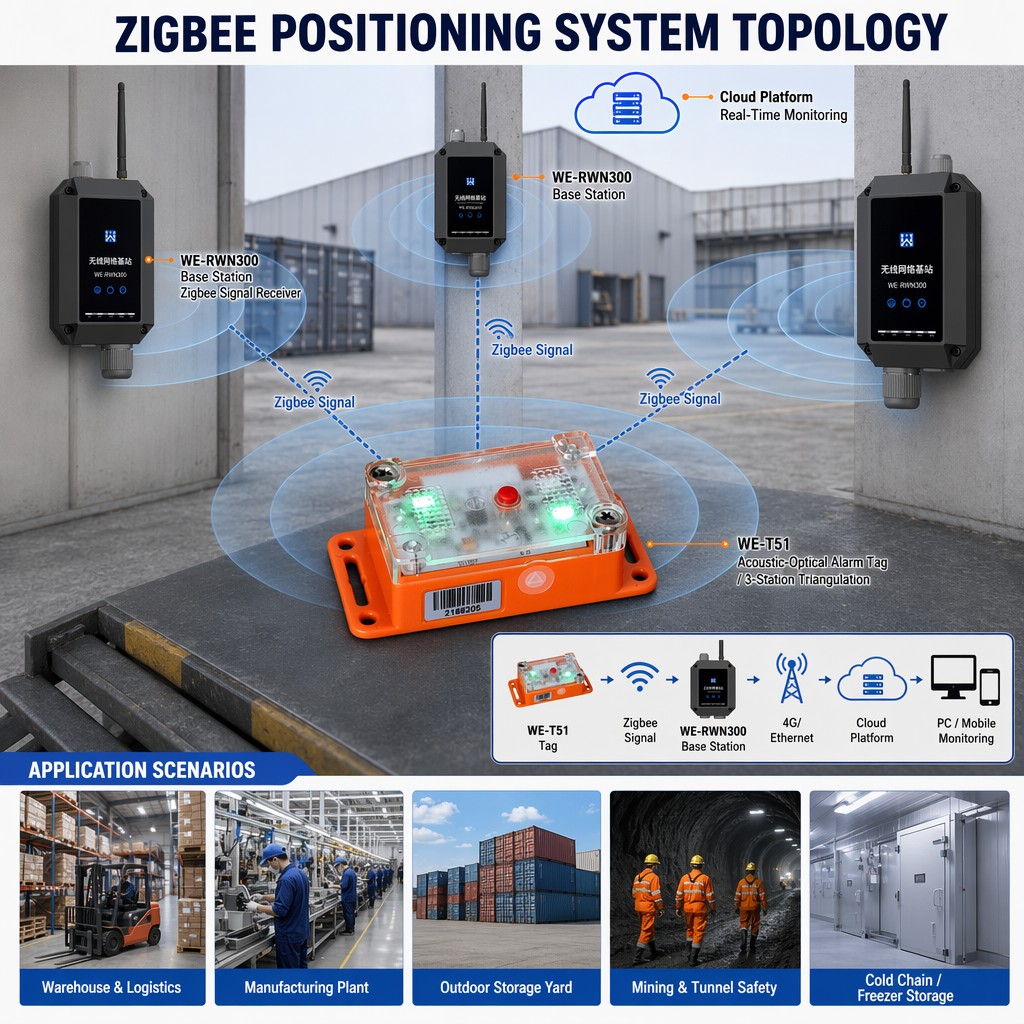

The WE-T51 electronic tag regularly broadcasts the tag ID information wirelessly to the outside world, and the transmission distance can reach up to 100 meters. Deploy a positioning base station (system) to determine the specific location of the tag. Through the base station, handheld computer or mobile phone APP, you can call the electronic tag and let it send out sound and light reminders to further facilitate the user to find. The electronic tag is fixed on the turnover box, trolley, workpiece and other objects, no matter where the thing is moved, it can be easily found.
Press the red confirmation button to stop the sound and light alert immediately, and send a confirmation message to the system to notify the system that the specified item has been found.
Provide a warehouse management system that can be used free of charge on a computer, handheld computer or mobile phone, which can easily inventory and call the labels in the warehouse, make the labels shine and sound, avoid the loss of items, facilitate the search of items, and improve the efficiency of warehouse management.
The electronic tag uses a ER14505 lithium battery, which can meet the requirements of 200 million wireless transmissions or 80 hours of sound and light reminders, and there is a warning of underpower when the power is insufficient.
Battery life assessment
Let’s assume that the tag uses an average of 10 minutes of calls per day, and the tag emits every 1 second.
The daily wireless transmission power consumption is 3600*24/2000000000 = 0.000432
The daily audible and visual reminder power consumption is 10/(80*60) = 0.002083
Total power consumption per day 0. 002515
1/0. 002515 = 397 days
