WE-HCBB59 Indoor BLE Ear Tags for Cattle and Sheep

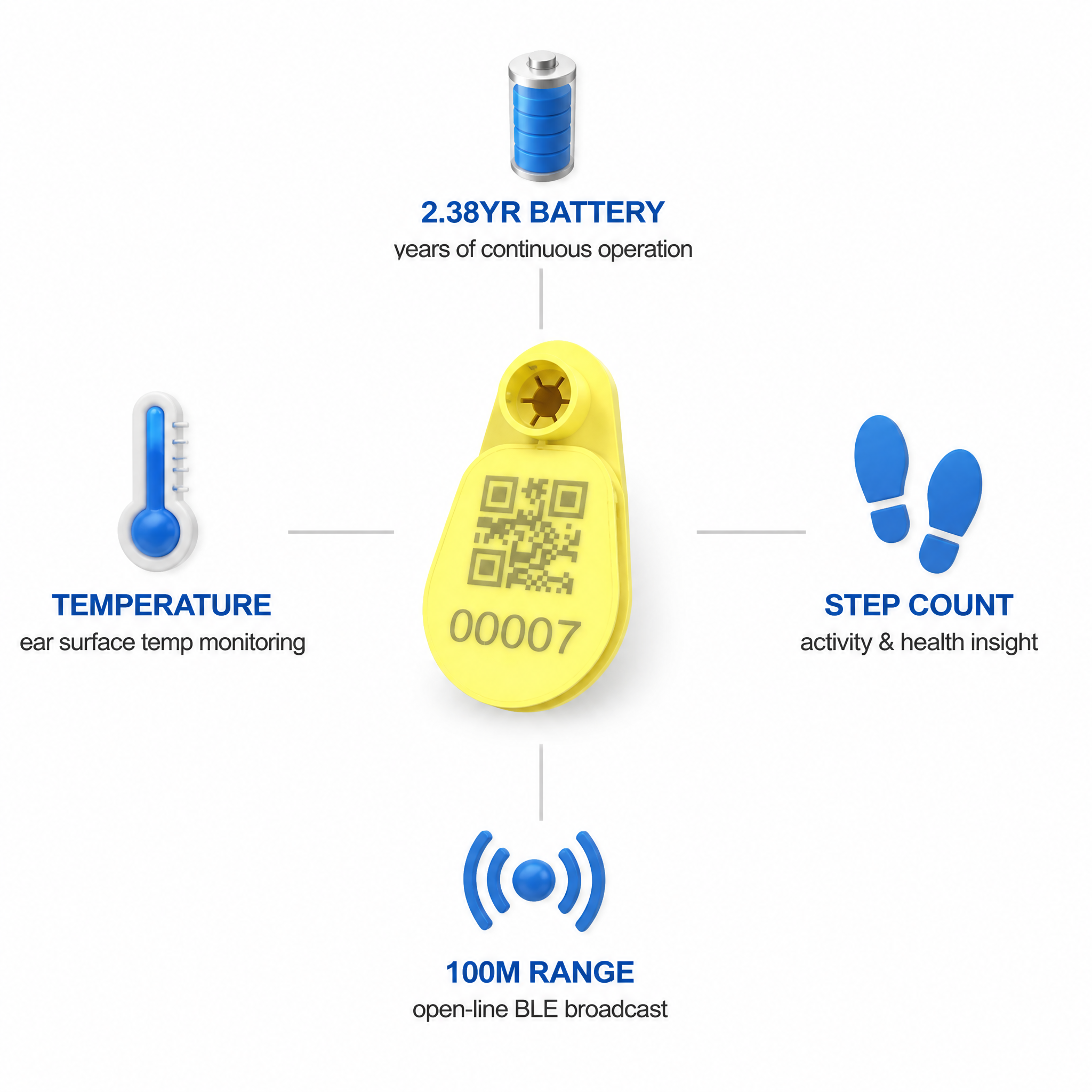

- Long Battery Life: Operates for up to 2 years with 225mAh battery.
-
Temperature Monitoring: Accurate to ±0.1°C for fever detection.
-
Step Monitoring: Tracks activity spikes for estrus detection.
-
Waterproof Design: IP68 rated for rain, washdown, and mud resistance.
-
Range Extensive: Up to 100 meters open field coverage.
WE-HCBB59 is a Bluetooth ear tag based on a low-power Bluetooth chip. powered by a lithium manganese button battery with a theoretical battery life of up to 2.38 years (at an ambient temperature of 25°C, acceleration updates every 60 seconds, temperature updates every 60 seconds, and broadcasts every 10 seconds).
|

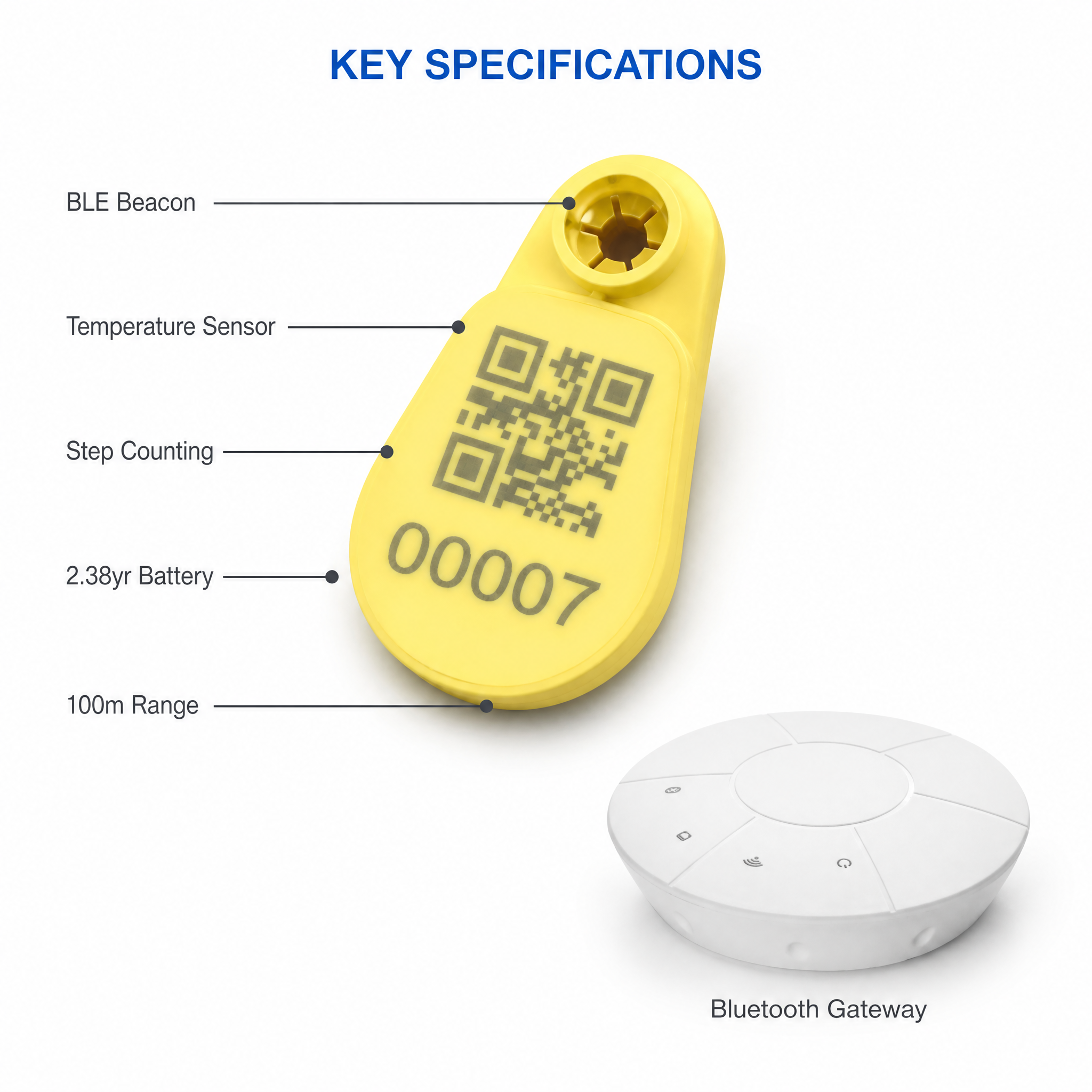

Basic specifications
|
|
|
Product Model
|
WE-HCBB59
|
|
Product size (diameter*height)
|
55.9631.7614.2mm
|
|
Product weight
|
12.36 g ( ear tag including battery) , 1.27 g (ear stud)
|
|
Shell material/color
|
PP / yellow (default)
|
|
Waterproof grade
|
IP68
|
|

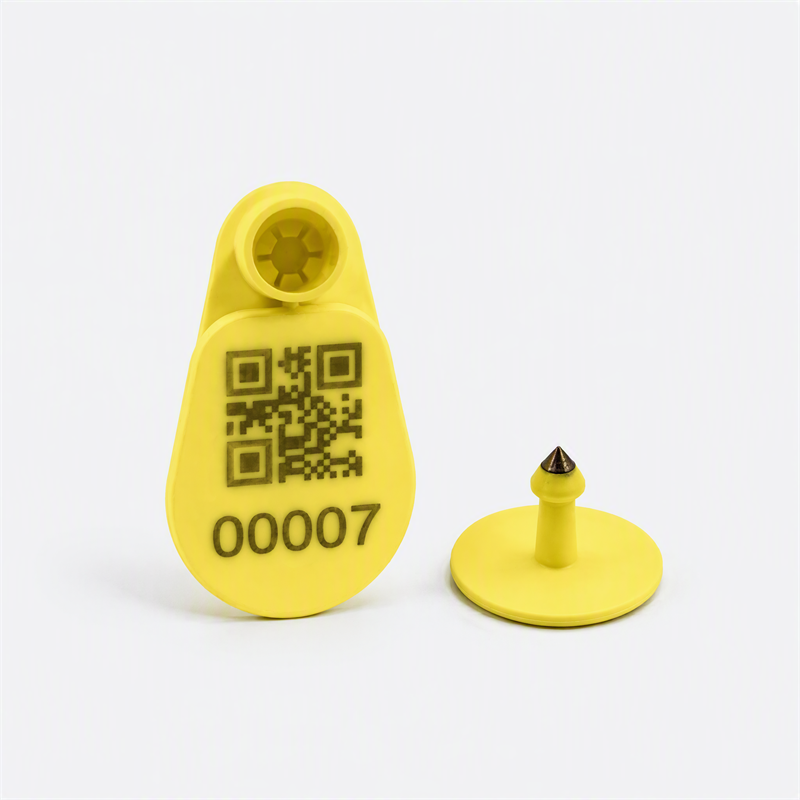

Installation
|
Use ear studs to fix ear tags on the ears of cattle, sheep and pigs
|
|
Battery Model
|
Button lithium manganese battery CR2032
|
|
Battery voltage
|
3.0 V
|
|
Battery capacity
|
225 mAh
|
|
Is the battery replaceable?
|
Can’t
|
|
Configure the app
|
Should be configed by HoneyComm Before delivery.
|
|
Technical Specifications
|
|
|
Bluetooth version
|
BLE4.2
|
|
Broadcast data format
|
iBeacon or customized according to customer needs
|
|
Frequency range
|
2400MHz~2483.5MHz
|
|
Transmit power
|
-20 dBm ~+ 4 dBm (default 0 dBm)
|
|
Broadcast interval
|
10s (default) , can be adjusted according to customer needs
|
|
Receive sensitivity
|
-9 5 dBm
|
|
Broadcast distance
|
100 meters (open viewing distance)
|
|
Temperature measurement accuracy
|
±0.1°C@+28°C to +43°C ±0.5°C@-10°C to +60°C
|
|
Pedometer
|
support
|
|
Average current
|
10.55uA (acceleration updated every 60s, temperature updated every 60s, broadcast once every 10s)
|
|
Theoretical battery life
|
2.38 years ( acceleration updated every 60 seconds, temperature updated every 60 seconds, broadcast every 10 seconds , ambient temperature 25°C)*
|
|
Operating temperature
|
-40°C~85°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Operating humidity
|
10%~90% non-condensing
|
|
Storage humidity
|
5%~90% non-condensing
|
