WE-T96 Long-distance Temperature Humidity Monitoring 2.4GHz Electronic Tag
- Temperature and humidity data are transmitted every 10 seconds, with a service life of no less than 5 years.
- The effective temperature measurement range is-40°C to 60°C, with an accuracy of ±5°C.
- The effective range for humidity measurement is 10% to 90% RH, with an accuracy of ±2% RH.
- The wireless transmission power is 3mW, with a maximum transmission range of up to 100 meters.
- The wireless frequency band utilizes the globally accessible 2.4GHz microwave spectrum, requiring no application or payment.
- The device features a low-voltage warning; when under-voltage occurs, it can continue operating for 30 days and the battery can be replaced by the user.

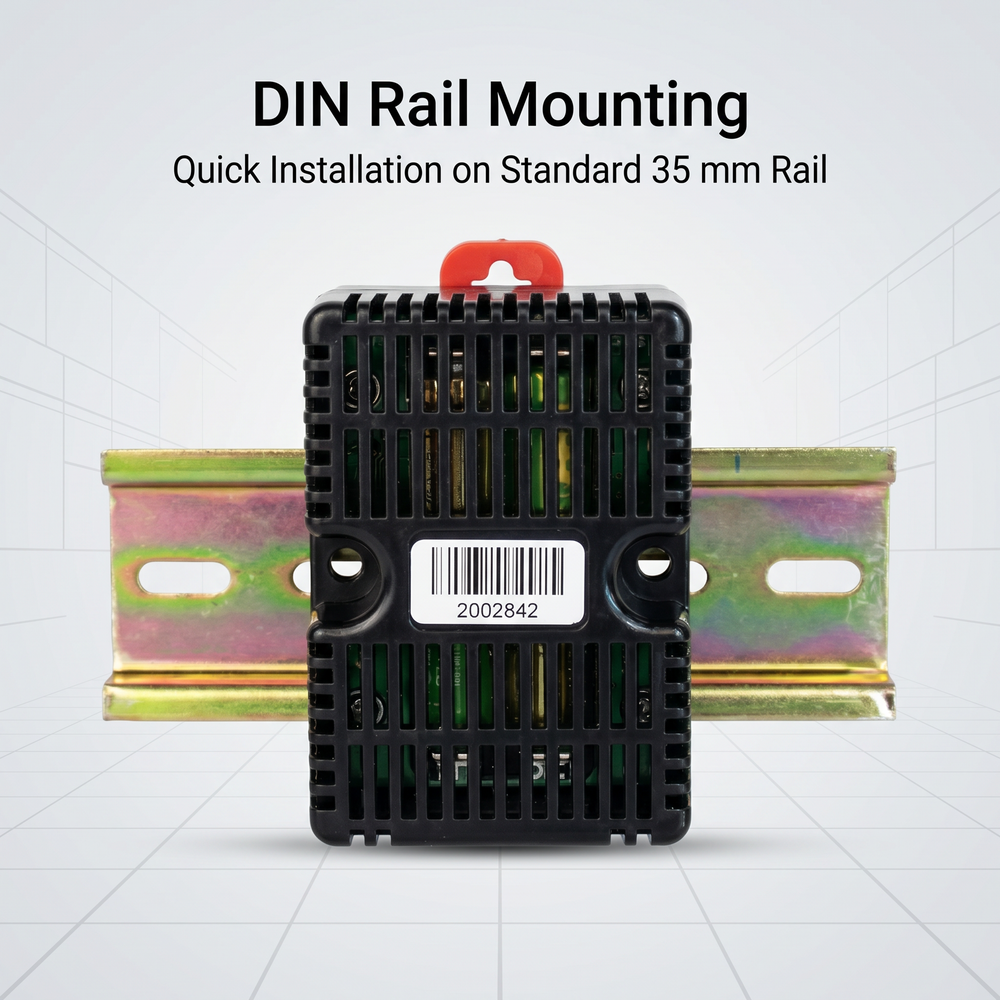

- It can be installed using standard 35mm rails or secured with screws.

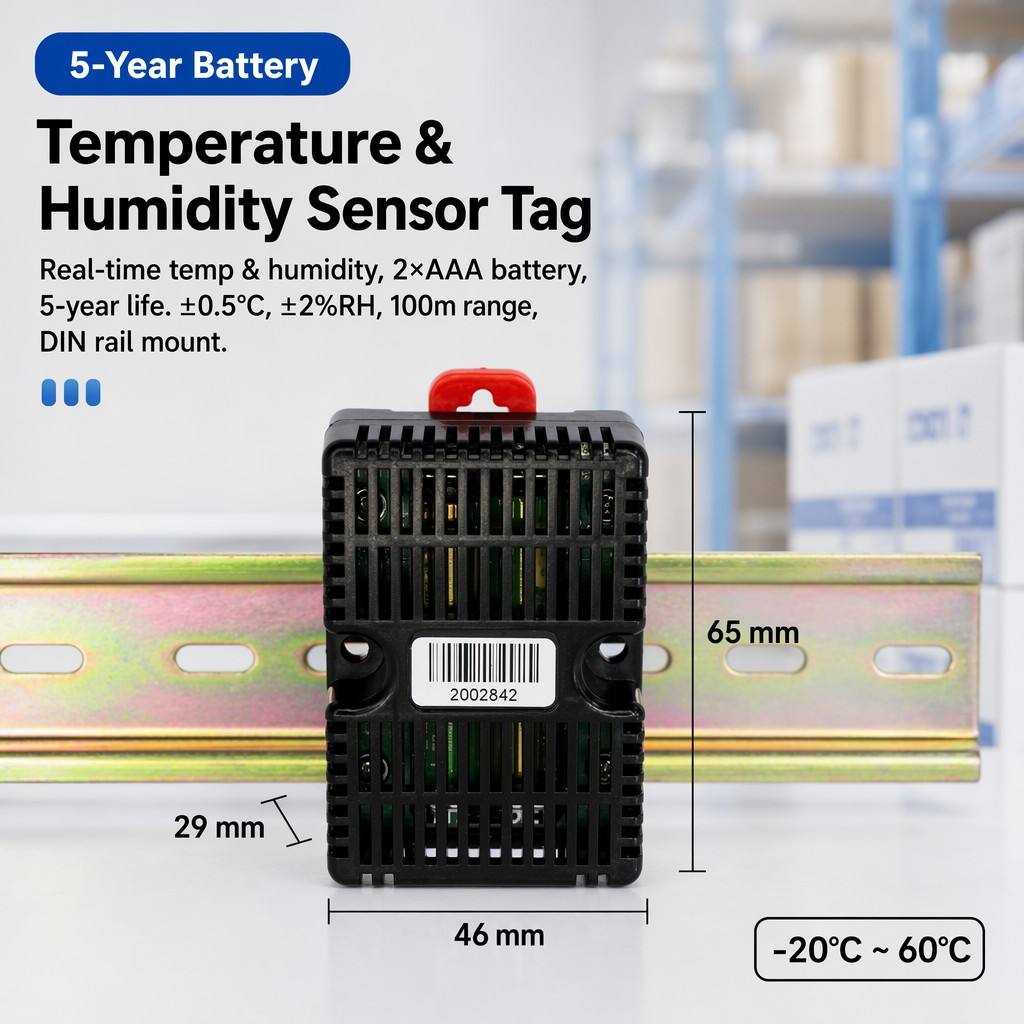

- The shape is a rectangular prism measuring 65mm*46mm*29mm, with a weight of 58 grams.
- Operating temperature ranges from-20°C to 60°C, with low-temperature battery replacement capable of withstanding temperatures down to-40°

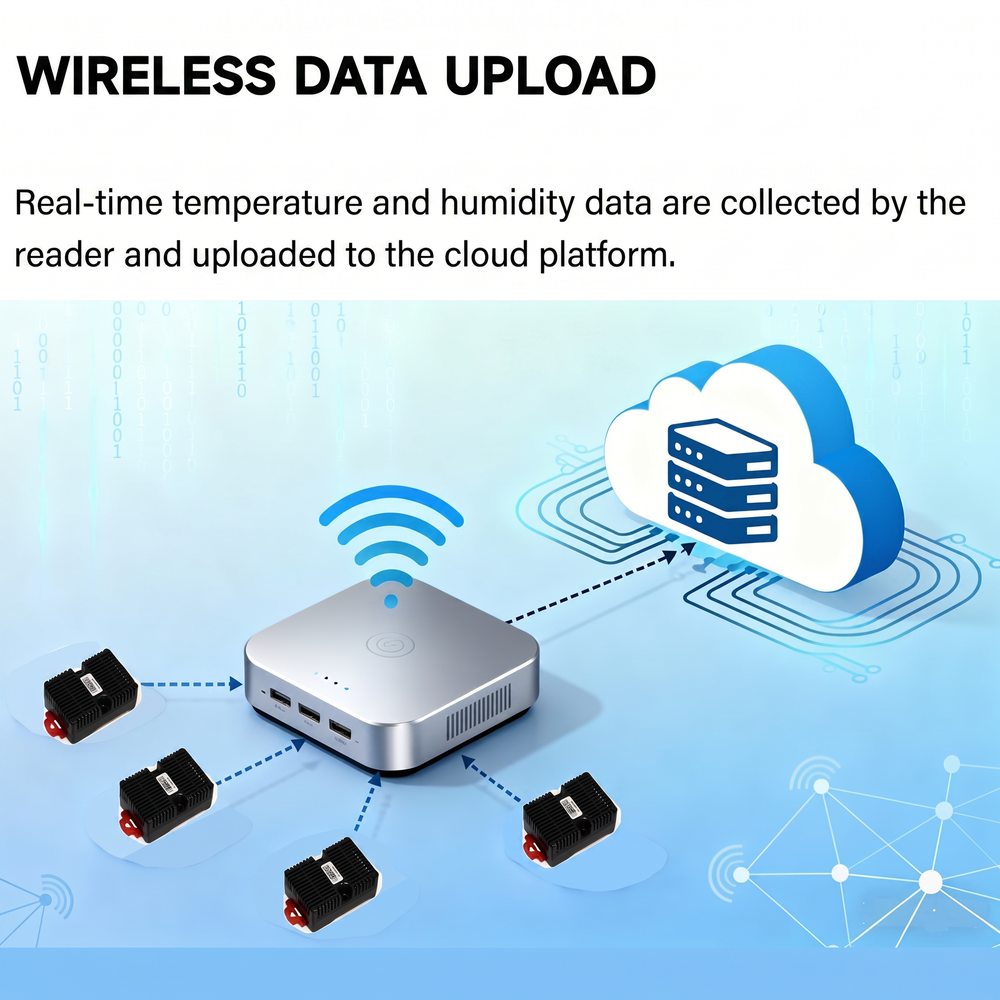

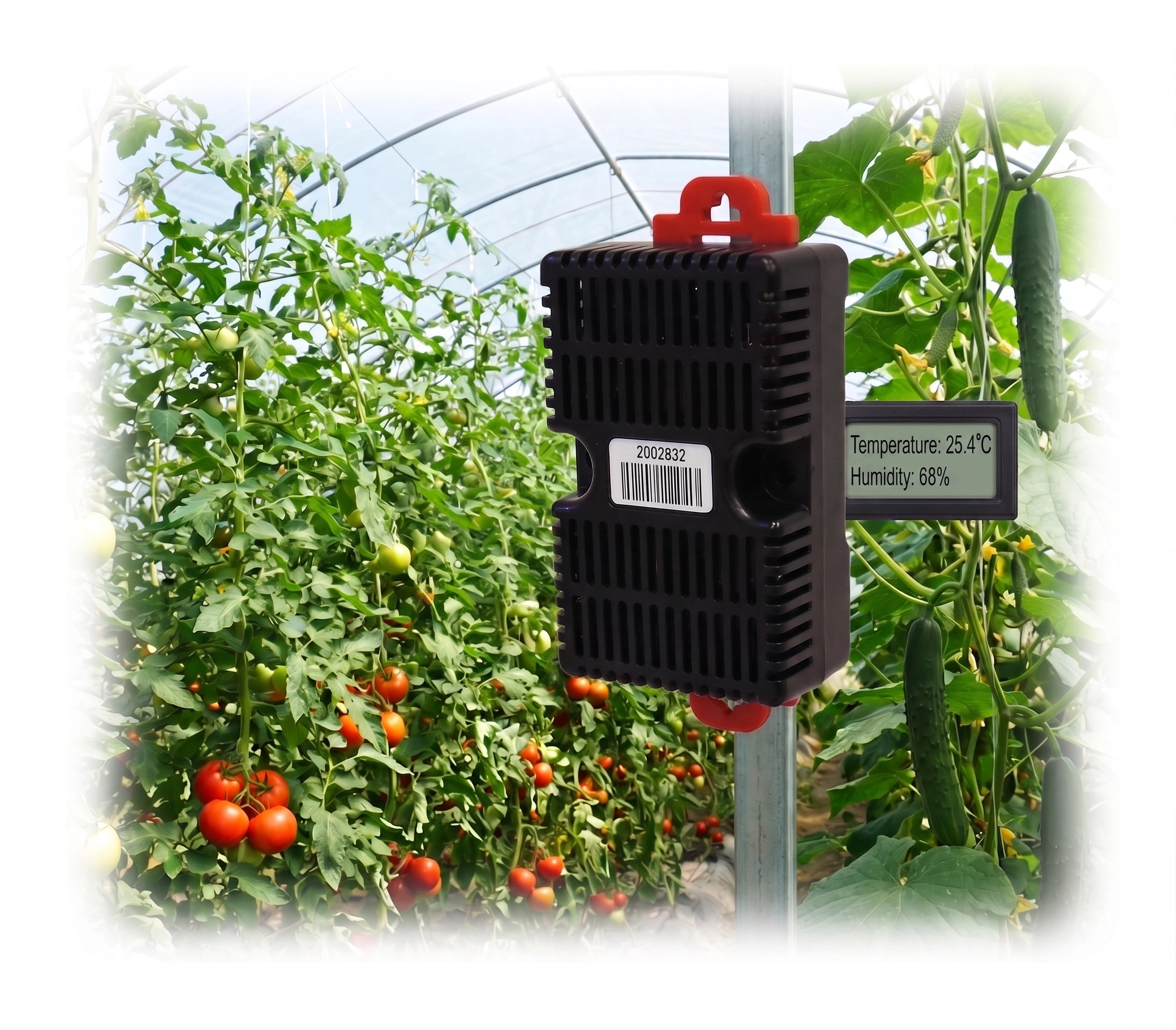

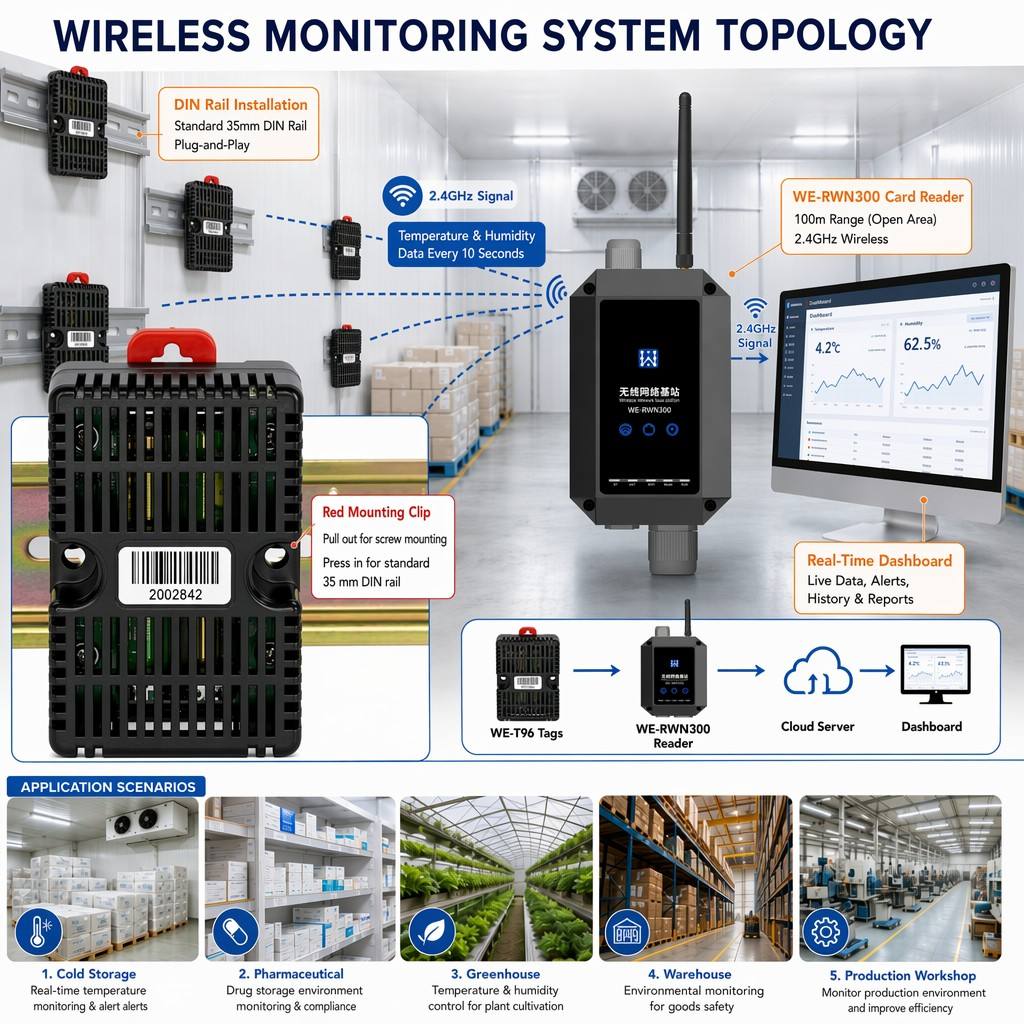

Temperature and humidity electronic tags can collect environmental temperature and humidity values in real time, transmitting them wirelessly to remote readers with a maximum transmission distance of 100 meters. They are widely used in temperature and humidity-sensitive environments such as warehouses, pharmacies, cold storage facilities, vegetable greenhouses, and production workshops.
The T96 battery tag utilizes two AA batteries, emitting current temperature and humidity values every 10 seconds, with a continuous service life of no less than 5 years. A low-voltage alert is triggered when battery power is insufficient, allowing for manual battery replacement. It operates within a wide temperature range (-20°C to 60°C) and can maintain functionality in environments as low as-40°C after low-temperature battery replacement.
This electronic tag features a temperature measurement accuracy of 0.5°C and humidity detection precision of 2%. It can be mounted on standard 35mm rails or secured with screws.
Tags report data every 3 seconds by default (reporting frequency is customizable at factory settings). The submitted data is delivered to users via the card reader, primarily including tag ID, tag type, low-voltage alert, and extended data. All tag types share identical data formats except for “extended data.” For detailed specifications, please refer to the card reader’s user manual.
This tag extends the data length to 4 bytes, indicating 4 bytes of extended data.
