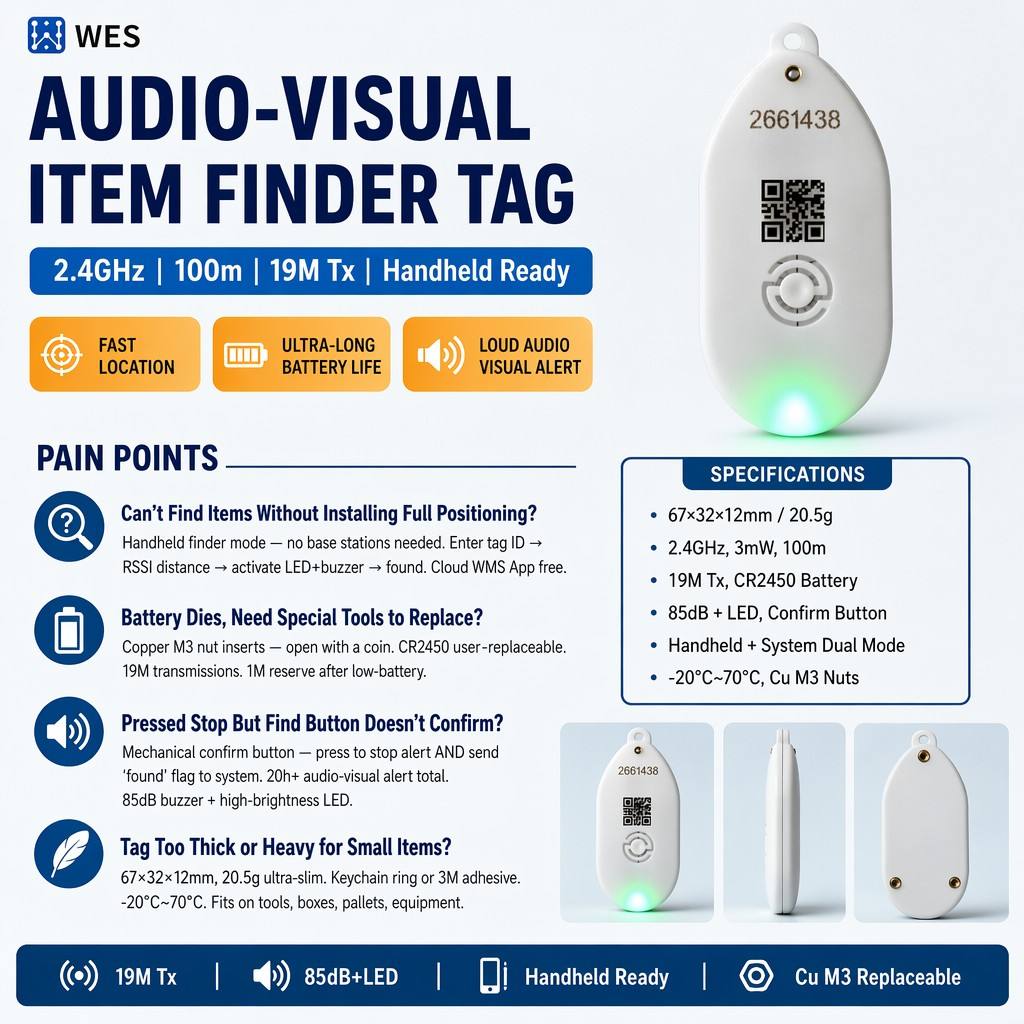

WE-T01 Elliptical Acoustic-Optical 2.4GHz Tag
- Eye-catching audio-visual alert: Equipped with one high-brightness LED bead and one 85 dB buzzer; when a call command is received, it will emit both a conspicuous light and a loud sound, ensuring that attention is drawn in all environments.
- Ultra-long firing cycle: A single CR2450 button battery can support up to 19 million firings; furthermore, the battery is replaceable, ensuring long-term stable operation of the device.
- Mechanical confirmation button: Features a physical mechanical button; pressing it once will stop the audible and visual alerts and report the button press event.
- Long-duration audio-visual functionality: The cumulative duration of audio-visual alerts shall be no less than 20 hours (excluding power consumption associated with wireless transmission), meeting the usage requirements for frequently locating items.
- Smart Battery Management: Equipped with under-voltage alerts and real-time battery level display; even after an under-voltage condition occurs, the remaining battery power can still enable 1 million transmissions, allowing users to stay informed about their battery status and plan their usage accordingly.

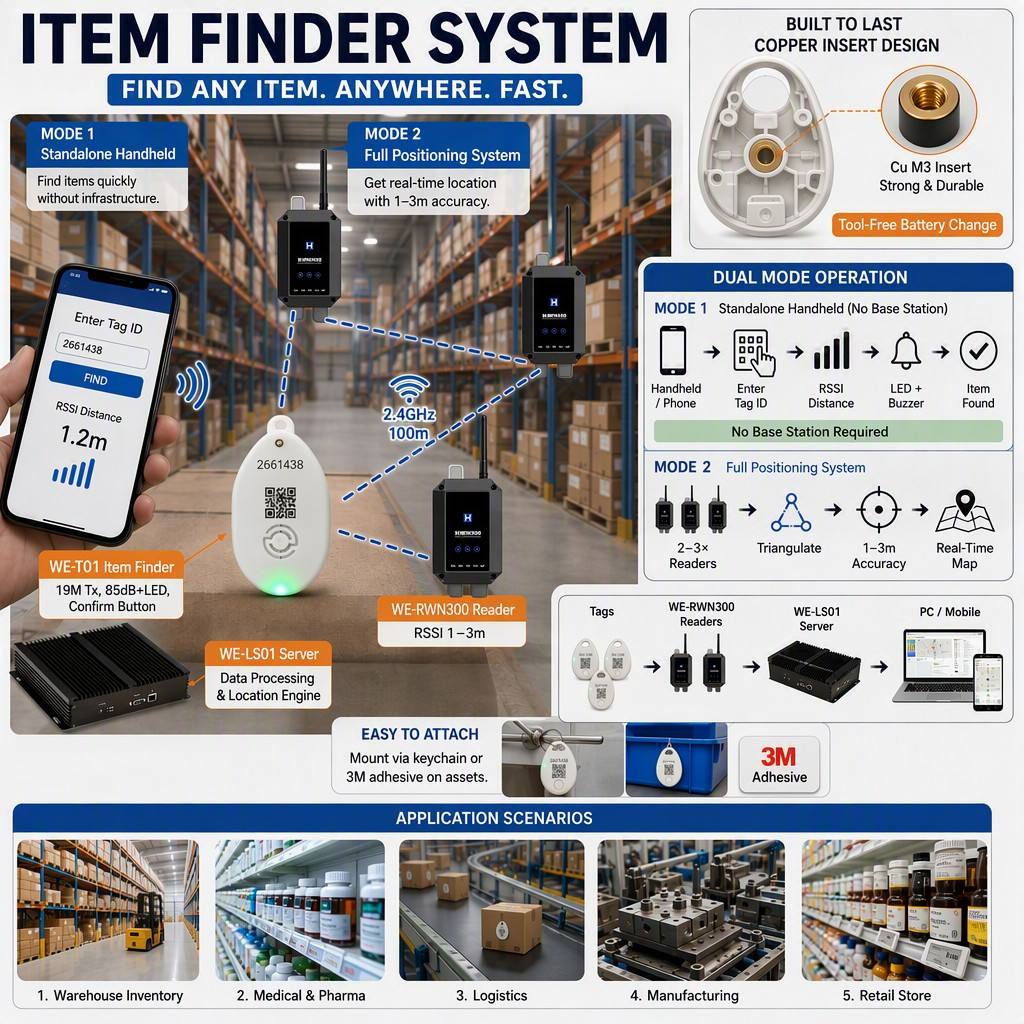

The WE-T01 Active Acoustic-Optical Electronic Tag is a powerful smart device with a wide range of application scenarios, designed to provide efficient positioning and retrieval solutions for managing various items. This tag periodically broadcasts its tag ID information via wireless signals; in open environments, the maximum transmission distance can reach up to 100 meters. When paired with a positioning base station (system), it enables precise positioning; even without a dedicated positioning system, the tag can be easily located using only a handheld device.
It is equipped with one high-brightness LED light and one 85 dB buzzer; upon receiving a call command, it emits both a conspicuous light and a loud sound, facilitating the rapid localization of target items and enabling their identification—then, by pressing the confirmation button, the call can be terminated. By securing this device to various objects such as transport boxes, carts, or workpieces, it allows for easy location of these items regardless of where they are being transported.
Additionally, the accompanying Warehouse Management System supports use on computers, handheld devices, or mobile phones, enabling efficient inventory counting and item calling within the warehouse, effectively preventing item loss and significantly enhancing warehouse management efficiency. The electronic tags are powered by a CR2450 button battery, offering long battery life and intelligent power management capabilities, thereby meeting the requirements of various application scenarios.
| project | specifications | explain |
| Acoustic and lighting module | LED LED beads | 1 high-brightness LED |
| buzzer | 85 decibels | |
| Power Supply Parameters | Battery Type | CR2450 Button Cell Battery |
| Number of transmissions | With a full charge, it can fire 19 million times. | |
| Undervoltage-induced trigger count | 1 million times | |
| Cumulative audio-visual duration | No less than 20 hours (excluding wireless transmission power consumption) | |
| Standby power consumption | 2uA | |
| Wireless Parameters | transmitting power | 3mW |
| launch range | Can reach up to 100 meters | |
| Wireless frequency band | 2.4 GHz Global Open Microwave Frequency Band | |
| Physical Specifications | way to install | Keychain clip pendant, 3M adhesive tape attachment |
| architectural design | Copper insert M3 nut | |

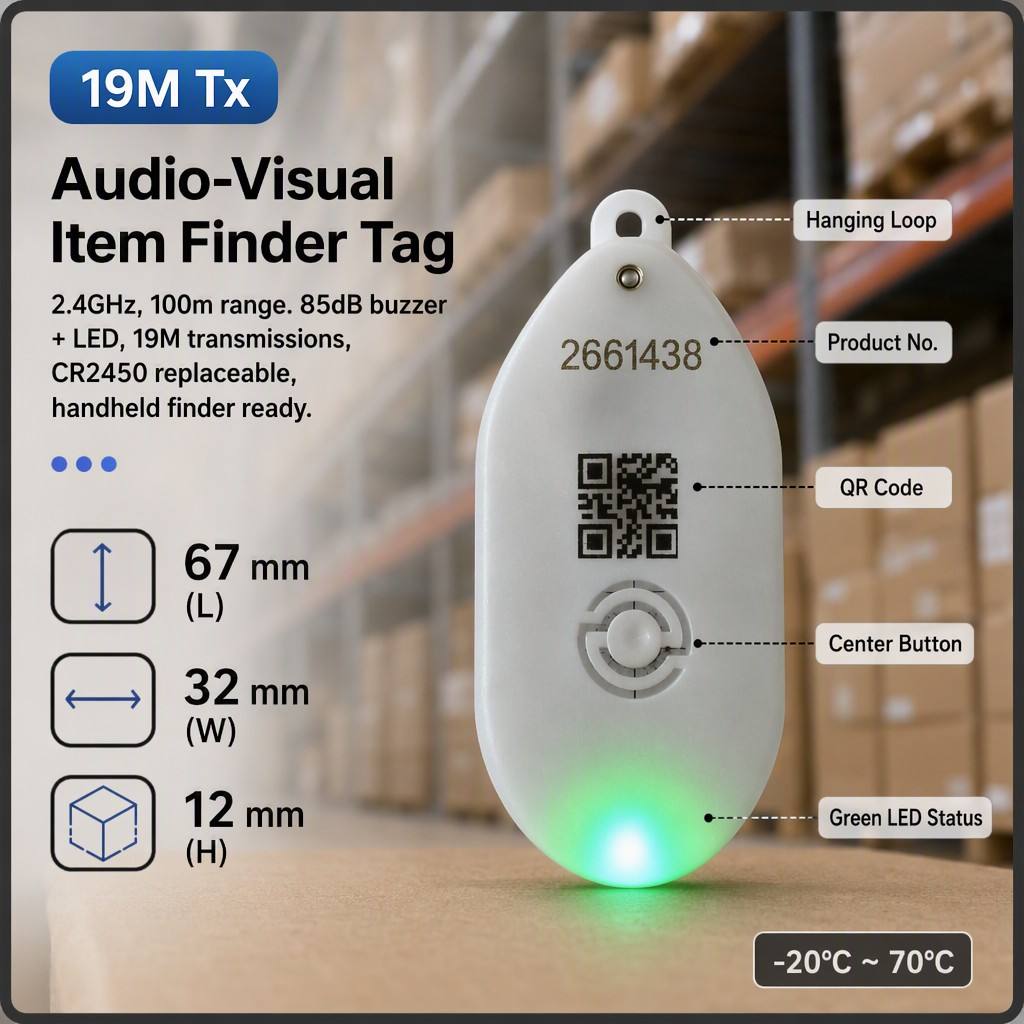

| outline dimension | Ellipsoid: 67 mm × 32 mm × 12 mm | |
| weight | 20.5 g | |
| work environment | temperature | – 20℃ ～70℃ |
| humidity | 10% – 80% |
